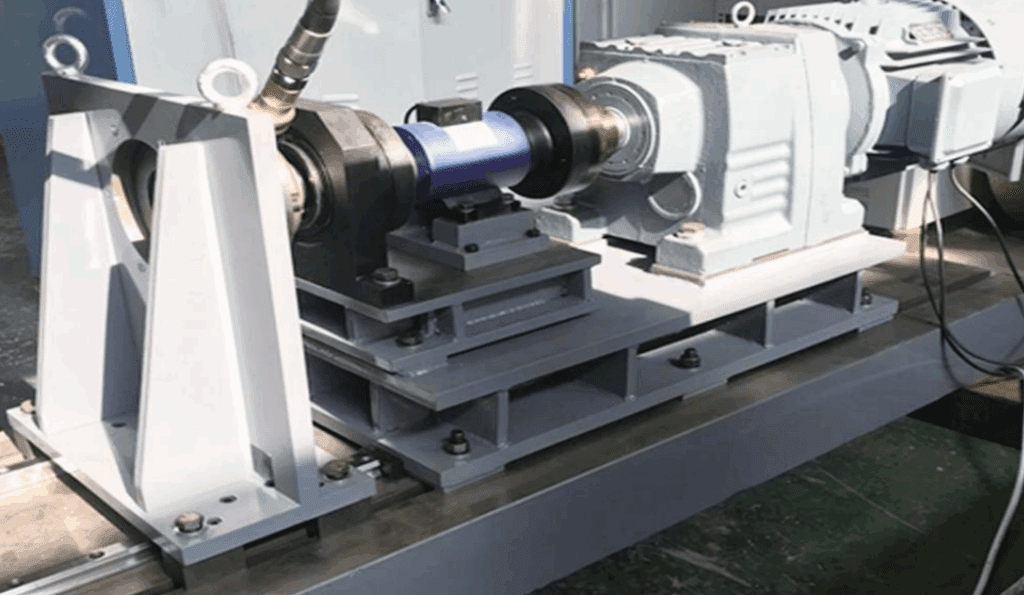

The Pneumatic Motor Test Bench is a cutting-edge solution designed to assess the performance of pneumatic motors. With advanced testing capabilities, it simulates operational conditions such as speed, torque, and efficiency to ensure the highest quality and reliability of pneumatic motors. The test bench is engineered for accurate measurements and real-time data collection, providing detailed insights into motor performance, making it an essential tool for manufacturers, R&D labs, and quality control applications.
Pneumatic Motor Test Bench: Precision Performance & Efficiency Analysis
Our Pneumatic Motor Test Bench is a dedicated solution for evaluating the performance characteristics of air motors, including vane, piston, and turbine types. By simulating real-world operating conditions, the system precisely measures key parameters like torque, speed, and power, ensuring design validation, quality control, and optimized efficiency.
Advanced Load Application & High-Resolution Measurement
Dynamometer Selection and Loading
The test bench is designed to precisely evaluate air motor characteristics through flexible load application methods:
- Load Mechanism Options: Supports various dynamometer types, including Eddy Current, Magnetic Powder, or Electric Dynamometers, depending on torque range and response speed requirements.
- High Responsiveness: The selected load mechanism ensures quick response and high resolution, which is crucial for accurately capturing the dynamic performance of pneumatic motors.
- Efficiency Focused: The test solution excels in performing efficiency and temperature rise tests over extended periods.
Dedicated Air Consumption Measurement
A unique feature of our system is the high-accuracy measurement of compressed air utility:
- Flow Analysis: Precisely measures the unit time compressed air consumption across various operating points (no-load to maximum load).
- Efficiency Calculation: Directly links mechanical output power to air consumption to provide the motor's true **air-to-power efficiency** and specific air consumption rate.
- Optimization Data: Provides data necessary for optimizing motor design to reduce energy consumption and operational costs.
Comprehensive Testing Projects and Analysis
Our Air Motor Performance Testing solution covers the full spectrum of required quality control and R&D validation projects:
| Test Project | Primary Measurements | Engineering Value |
|---|---|---|
| Torque / Load Speed Characteristics | Torque, maximum output power, rated speed. | Defines the motor’s characteristic curve for load matching and application sizing. |
| Air Consumption Rate | Unit time compressed air consumption. | Crucial for calculating operational costs and optimizing compressor requirements. |
| Efficiency & Temperature Rise | Mechanical efficiency, rate of temperature rise during long-term operation. | Verifies thermal stability and prevents premature component failure due to overheating. |
| Overload Protection & Stall Test | Ability to stop the motor under extreme overload conditions. | Assesses safety features and structural integrity under transient peak loads. |
| Forward/Reverse Performance | Torque consistency and dynamic response in both rotation directions. | Verifies symmetrical performance critical for reciprocating applications. |
| Noise and Vibration (NVH) | Acoustic measurement of noise and vibration levels. | Ensures compliance with regulatory standards and improves operator comfort. |
Key Advantages for Precision Testing
- Fast Response & High Resolution: This solution is an optimal choice due to its quick dynamic response time and high measurement resolution, providing accurate speed analysis.
- Energy Efficient: Utilizing electric or magnetic powder dynamometers provides a highly efficient and quiet loading solution.
- Comprehensive Monitoring: Integrated sensors and software continuously monitor all key parameters (torque, speed, power, temperature) for enhanced data integrity and reliability.
- Overload Protection: Automated shutdown and alarm functions protect the DUT and the test system against mechanical and thermal stress.
Technical Specifications
Maximum Speed: 0-3000 RPM (Adjustable)
Torque Measurement: Up to 500 Nm (customizable based on motor specifications)
Air Pressure Range: 0.5 to 8 bar (adjustable for various pneumatic motor types)
Test Cycles: Programmable automated test cycles for different test scenarios
Power Supply: AC 220V or 380V, 50/60Hz, with energy recovery capabilities for reducing operational costs
Measurement Accuracy: ±0.1% full scale for torque and speed
Cooling System: Integrated air/water cooling for continuous testing
Test Items and Capabilities
Torque and Speed Measurement: Real-time measurements of torque, rotational speed, and power consumption
Energy Efficiency Testing: Evaluation of energy consumption at different operational speeds and loads
Overload Testing: Simulated high-load testing for pneumatic motors under extreme conditions
Noise and Vibration Testing: Assessment of motor noise levels and vibration characteristics
Temperature Monitoring: Continuous monitoring of motor temperature during testing to ensure safe operation
Endurance Testing: Long-duration testing to simulate motor life cycle performance under operational conditions
Dynamic Load Testing: Ability to simulate real-world load conditions for the pneumatic motors under test
