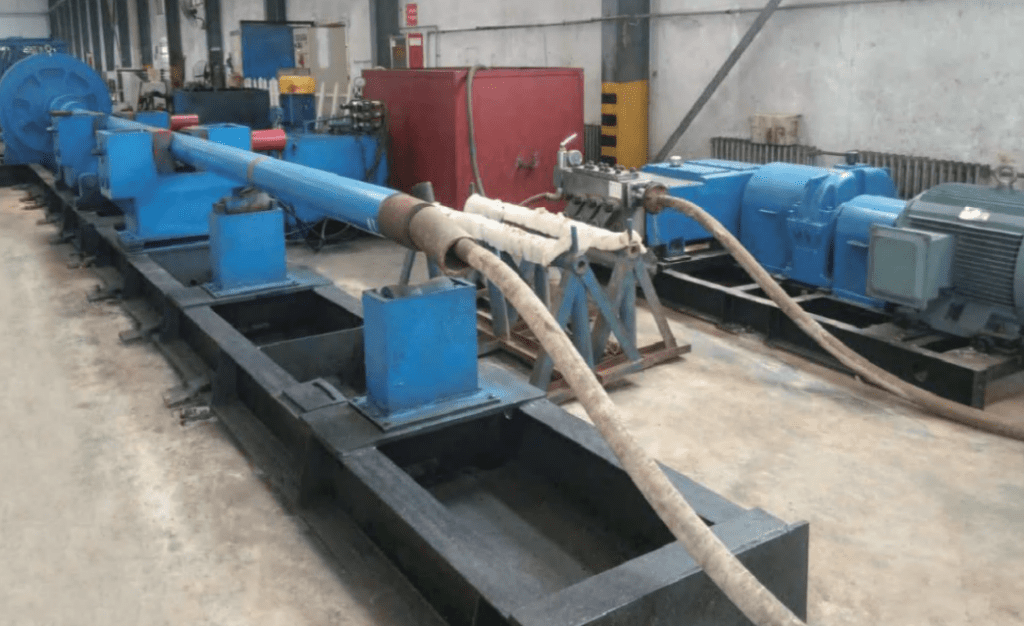

Downhole Mud Motor Test Bench
Professional Testing System for Screw Drilling Tools
The Downhole Mud Motor Test Bench is a specialized testing system designed for screw drilling tools (mud motors)used in oil & gas drilling, HDD, and geothermal applications.
It enables accurate performance testing, functional verification, and reliability evaluation under simulated downhole operating conditions.
This test bench is widely used by mud motor manufacturers, drilling tool service companies, R&D centers, and quality inspection departments to ensure product performance, stability, and compliance before field deployment.
Typical Applications
Downhole mud motor manufacturers
Screw drilling tool R&D and testing
Oil & gas drilling equipment suppliers
HDD and geothermal drilling tool testing
Quality inspection and acceptance testing
Test Objects
The test bench supports testing of different types of screw drilling tools, including:
Power sections (stator & rotor assemblies)
Complete downhole mud motors
High-torque and high-speed mud motors
Directional drilling mud motors
Core Testing Capabilities
The downhole mud motor test bench provides comprehensive testing functions, including:
Output torque measurement
Rotational speed (RPM) testing
Differential pressure testing
Power output and efficiency analysis
Flow rate and hydraulic performance testing
Load simulation under drilling conditions
Continuous operation and endurance testing
All test parameters are measured, monitored, and recorded in real time.
Downhole Mud Motor Test Bench
High-Precision Performance & Durability Validation for PDM Tools
The Downhole Mud Motor Test Bench (PDM Test Stand) is an advanced surface-based simulation platform engineered to validate the hydraulic-to-mechanical energy conversion of screw drilling tools. Designed for the rigorous demands of the petroleum industry, it ensures every motor delivers rated torque and speed efficiency before it reaches the wellbore.
Advanced Simulation & Control Architecture
Realistic Load Simulation
To accurately replicate downhole conditions, the system integrates complex fluid and mechanical stress simulations:
- High-Pressure Mud Circulation: Utilizes reciprocating pump units to deliver stable fluid flow to the PDM inlet.
- Dynamic Torque Loading: Simulates rock-crushing resistance and bit-on-weight friction using advanced AC dynamometers.
- Characteristic Curve Mapping: Automatically plots the correlation between flow rate, pressure drop, and output torque.
Intelligent Measurement & Control
Leveraging industrial-grade automation to ensure data integrity and energy efficiency:
- CAN Bus Integration: Uses **CAN Bus (TCP/IP)** for high-speed data acquisition and centralized power regulation.
- Energy Regeneration: Features an AC load feedback system that recycles mechanical energy back into the power grid, significantly reducing utility costs.
- Precision Calculation: Validates mechanical integrity via the core formula: $$P = \frac{2 \pi \tau N}{K}$$.
Essential Performance Test Projects
| Category | Measured Parameters | Engineering Objective |
|---|---|---|
| Characteristic Curves | Torque/Speed, Pressure/Torque, Flow/Speed | Defines the motor's operating envelope and efficiency. |
| No-Load Performance | Startup Pressure, No-load Speed | Verifies internal friction and baseline mechanical health. |
| Durability & Seal | 72-hour Stability, Temperature Rise, Leakage Rate | Ensures long-term reliability in high-risk environments. |
| NVH Diagnostics | Vibration Amplitude, Spectral Noise | Detects rotor/stator misalignment or bearing wear. |
Industrial-Grade Operational Standards
Engineered to maintain precision in rugged facility environments:
Technical Advantages
Realistic Downhole Simulation
Accurately simulates torque, pressure, and flow conditions encountered during drillingHigh Measurement Accuracy
Ensures reliable, repeatable, and traceable test resultsWide Compatibility
Supports various mud motor sizes, stages, and power ratingsRobust Industrial Design
Built for continuous operation in manufacturing and test environmentsComprehensive Safety Protection
Overpressure protection, emergency stop, and interlock systems
Typical Use Scenarios
New mud motor product development
Performance benchmarking and optimization
Factory acceptance testing (FAT)
Failure analysis and troubleshooting
Long-duration durability and life testing
Customization Options
The downhole mud motor test bench can be customized according to specific requirements:
Different torque, speed, and pressure ranges
Water-based or oil-based test media
Manual, semi-automatic, or fully automatic operation
Single-station or multi-station test layout
Integration with MES or quality management systems
